Documentation

Admin documentation

Configuration, storage, AI setup, backups, and operations.

For everyday use (uploading, editing, portfolios), see User documentation. For deployment, see Install.

Access model

CatalogueCanvas can run in single-admin or multi-user mode, secured by passwords and a session cookie.

• Admin — full access: upload, edit, organise, configure, and publish. All management screens require an authenticated admin session.
• Reader (multi-user mode) — can view the whole catalogue and download files, but cannot modify anything; all admin-only menus and controls are hidden.
• Public visitor — no login; can only reach portfolios marked Public.

When multi-user mode is on, users sign in with a username and password, and every user's password must be unique. When it is off, the original single-password admin login is used. The signed-in username is shown next to the Log out button. Admins manage accounts from the Users panel in Settings.

Security notes:

• Login is rate-limited: 5 failed attempts from one address in 5 minutes blocks further tries.
• Passwords are hashed (argon2); sessions use a signed cookie.
• Sessions are server-tracked and revocable, and state-changing requests are protected against CSRF with a double-submit token.
• The session signing key is generated automatically on first start and persisted at <CC_DATA_DIR>/secret.key — no manual setup required.
• Set a strong CC_ADMIN_PASSWORD in production (and a distinct password for every account in multi-user mode).

Network access

Public IP addresses are blocked by default

CC_ALLOW_EXTERNAL_REQUESTS defaults to false. Requests arriving from a public IP address are refused with 403; only private, loopback and link-local clients are served. If you reach your instance over a public address, set this before upgrading:

CC_ALLOW_EXTERNAL_REQUESTS=true

The default guards against the commonest self-hosting accident: a port forward that quietly puts the whole catalogue on the internet. It applies to every route, public portfolio links included, so publishing a portfolio to the world is something you opt into rather than something a stray router rule does for you.

A blocked request returns this body:

{
  "detail": "external requests are disabled. Set CC_ALLOW_EXTERNAL_REQUESTS=true to serve public clients, or add your reverse proxy to CC_TRUSTED_PROXIES."
}

Behind a reverse proxy

With nginx, Caddy, Traefik or a Cloudflare Tunnel in front, every request arrives from the proxy, so the check needs to know which address is the proxy and which is the real client. List the proxy:

CC_ALLOW_EXTERNAL_REQUESTS=true
CC_TRUSTED_PROXIES=172.18.0.2

X-Forwarded-For is read only when the immediate peer is on that list. Trusting the header from any caller would let anyone claim to be 127.0.0.1 and walk past the check, so while CC_TRUSTED_PROXIES is empty the header has no effect at all.

Blocked requests are recorded in the activity log, rate-limited to one entry per source address per minute so a port scanner cannot fill your disc.

Settings overview

The Settings page groups: Appearance, Users, Activity log, Usage statistics, LLM defaults, Prompt template, Libraries, and Backup & export.

Appearance

Theme (light/dark), accent colour, navigation layout (top/side), density (airy/balanced/dense), and enable/disable Favourites.

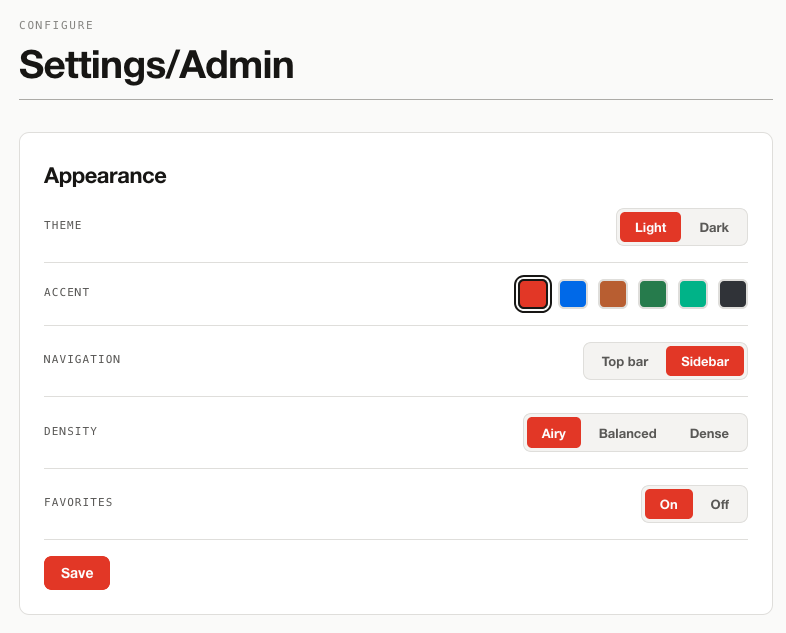

Settings → Appearance

Users

Enable multi-user mode and manage accounts. Each user has a username, a password, and a role (Admin or Reader). Every user's password must be unique. The last remaining admin cannot be demoted or deleted. With multi-user mode off, the instance uses the single-password admin login.

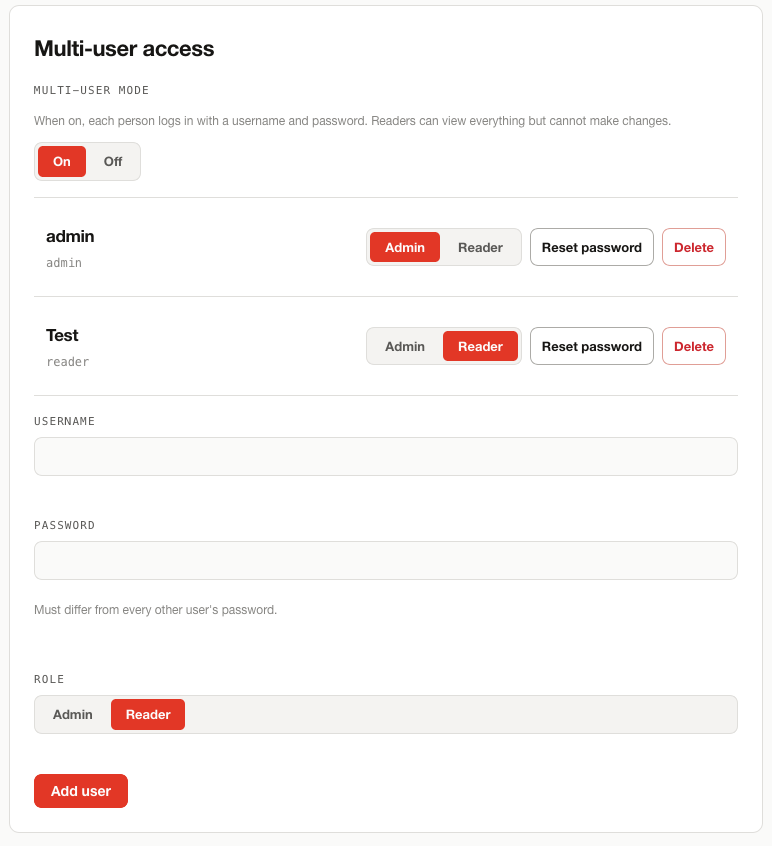

Settings → Users (multi-user mode on, with Admin and Reader accounts)

Activity log panel

A table of recent entries (when, who, action, target, detail), with Download log (CSV) to take the whole file away, and Delete log behind a typed confirmation, the same type-this-phrase pattern the metadata backups use, so it cannot happen on a stray click.

Clearing the log writes one final entry recording the clear, after truncation. A wiped log therefore shows who wiped it and when, rather than reading as an install where nothing ever happened.

See Activity log for the file format and what is recorded.

Usage statistics

Off by default. When switched on, the instance sends an anonymous ping at most once a week carrying only the app version, install type, operating system, database size, item count and total RAM. No hostname, IP, file paths or catalogue content is ever included.

The one-time install ping is separate and controlled by CC_INSTALL_TRACKING, not by this toggle. Privacy lists every field, shows the exact payloads, and covers sending the data to your own PostHog instead.

LLM defaults

Field	Meaning
API URL	OpenAI-compatible chat-completions endpoint
Model	Model name to call
Item type	What the items are (e.g. "image", "artwork")
Summary focus	What the description should emphasise
Bullet points	How many bullets to generate
Max words per bullet	Length cap per bullet
Generate description (LLM)	Whether the item editor offers a generate button

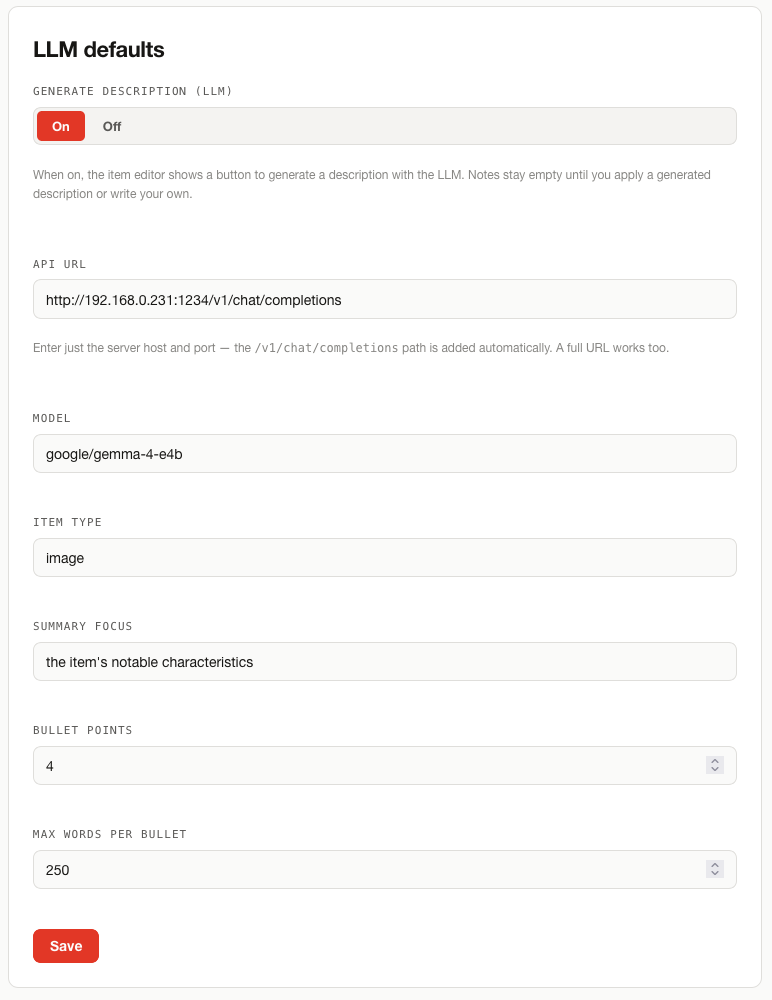

Settings → LLM defaults

Prompt template

Edit the raw TOML prompt used to build the LLM request. Placeholders: {item_type}, {summary_focus}, {bullet_count}, {bullet_max_words}. Includes a reset-to-default option.

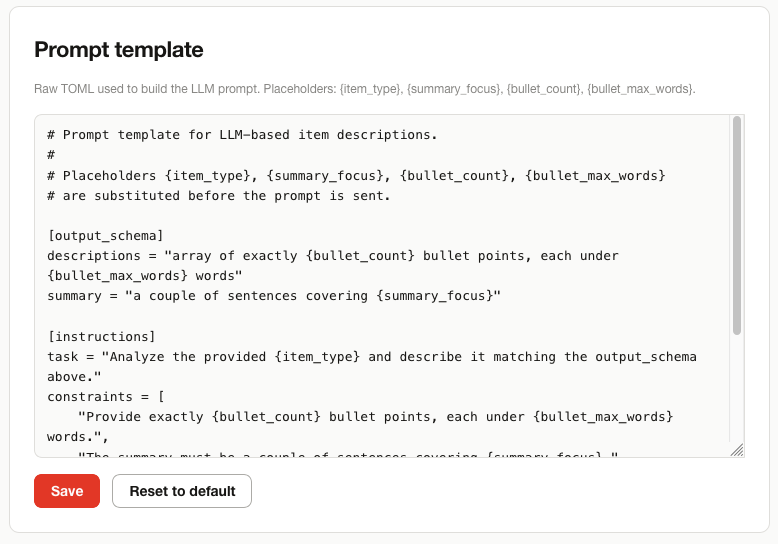

Settings → Prompt template

Libraries (multi-storage)

• Add libraries pointing at different writable directories (e.g. a second disc).
  • Paths must already be mounted into the container and writable.
• Set any library as the default for new uploads.
• Constraints: a library's path can't change once it holds items; a library can't be deleted while it contains items or while it is the default.

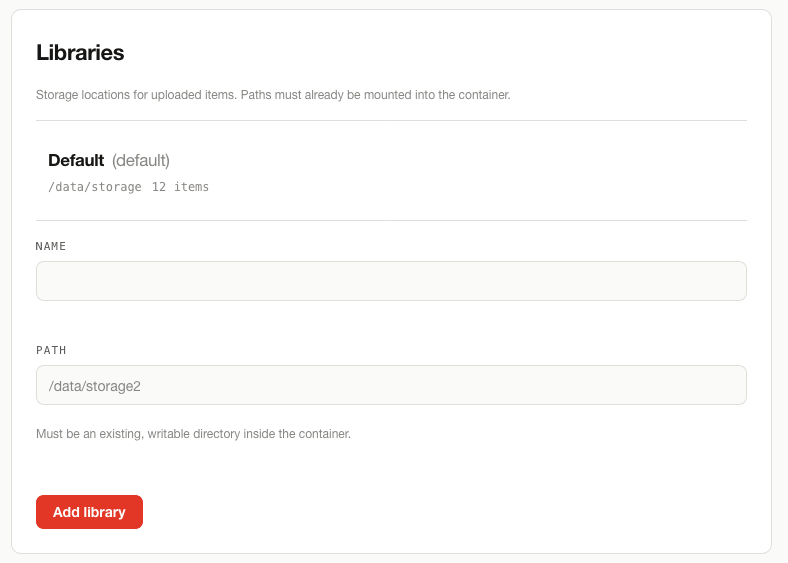

Settings → Libraries

Backup & export

• Database backup — a single SQLite snapshot.
• Full backup — a ZIP of the database plus every stored asset across all libraries.
• Live stats shown: total items, total collections, items missing a preview.

Exports are unencrypted

Database and full-data exports are admin-only but unencrypted. Download and store them over a trusted channel.

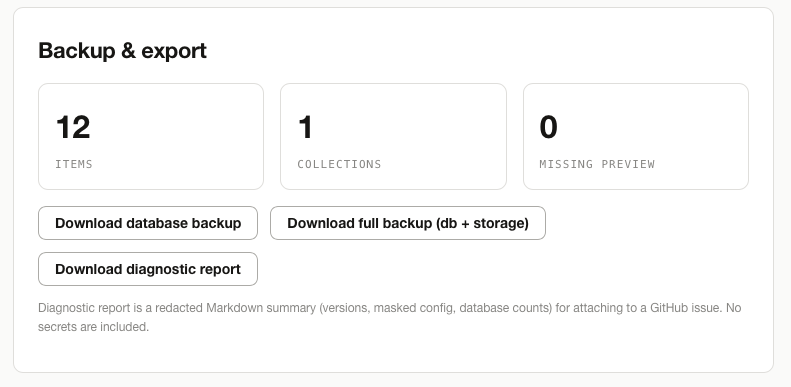

Settings → Backup & export

Collections and portfolio visibility (multi-user mode)

In multi-user mode each collection and portfolio has a visibility setting. Admin only (the default) hides the item from reader accounts entirely — it won't appear in lists, and direct URLs return "not found". Readers makes it visible to reader accounts as well.

After an upgrade, all existing collections and portfolios land on admin-only. Admins need to change them to Readers explicitly. Public portfolios at /p/<slug> are unaffected by this setting.

LLM / AI descriptions in depth

• Works with any OpenAI-compatible vision LLM — local (LM Studio, Ollama) or hosted.
• An API key may be supplied per request and is used only for that request — never stored. This also applies to batch generation: an optional API-key field is available when generating descriptions for many selected items at once.
• The API URL is auto-completed — enter just the host and port (e.g. http://host.docker.internal:1234) and /v1/chat/completions is appended; a full URL also works.
• Reasoning is stripped from results: <think> blocks and reasoning preambles from "thinking" models are removed, and the prompt requests a clean JSON-only response, so descriptions contain only the summary and bullet points.
• The request timeout is configurable from Settings (default 90 seconds), for both single-item and batch description generation — useful for local LLMs where a cold model load can exceed the default.
• Failures report the actual cause (connection, HTTP error, non-JSON, or no choices returned) rather than an opaque error.
• The api_url is validated at settings-save time — an invalid or non-allowlisted URL is rejected immediately with an error rather than failing silently at describe time.

LLM endpoint allowlist (CC_LLM_ALLOWED_HOSTS)

CC_LLM_ALLOWED_HOSTS is optional. When set, it takes a comma-separated list of hostnames or IPs; any api_url whose host isn't on the list is rejected when you save settings. This stops the Describe feature from being redirected at internal services you didn't intend.

Self-hosted servers on your LAN need to be listed explicitly, e.g. CC_LLM_ALLOWED_HOSTS=ollama.lan,192.168.1.50. Leave it unset for no restriction — the previous behaviour.

See Configuration for all available environment variables.

Findable metadata (FAIR)

• Full-text search covers every item's title, description/note, tags, and the full contents of its uploaded metadata.json / metadata.toml. Results are ranked by relevance, with prefix matching. Search is handled on the server.
• Each item exposes a machine-readable metadata record in JSON-LD (schema.org VisualArtwork / Dublin Core) at /api/items/{id}/metadata, linked from the item page. The record embeds the item's persistent ID as @id / identifier, maps title, description, and tags to standard terms, and carries the uploaded metadata as additional properties — so items are findable and harvestable by external tools (the "F" in FAIR).

How items are stored (operator view)

• Each item lives under its library at items/<item-id>/ with a preview.webp and an other/ folder.
• SVGs are LZ4-compressed on disc. Compressed files are served exactly as stored, as a download — never decompressed or rendered in the browser. The WebP preview generated at ingestion remains the display image.
• Item IDs are unique word-NNN strings, checked against the database to avoid collisions.
• Items are deduplicated by content hash at ingest.
• Before extracting a ZIP, ingestion checks available disc space and enforces a per-file size cap as files are decompressed. An archive that would breach the limit is rejected with a clear error; normal uploads are not affected.
• SVG previews are capped at 2500 pixels on the longest edge (CC_PREVIEW_MAX_EDGE). Rasterising an SVG costs roughly the square of the output size, so without a cap a dense plotter file could take minutes and hold up an upload. The cap keeps the aspect ratio and never enlarges an image already below it. Set it to 0 to remove the limit. It applies to new ingests only; previews generated before the setting existed are unchanged.
• Ingestion runs off the request event loop. Uploading a large or dense ZIP no longer blocks unrelated requests. Before this, one slow ingest could stall every other call on the worker, which behind a reverse proxy appeared as a 504 on the upload and on unrelated pages while the app's own log reported success.

Upload concurrency and memory

CC_MAX_CONCURRENT_UPLOADS (default 4) caps how many uploads ingest at the same time. Each concurrent ingest job can transiently hold up to CC_MAX_ZIP_TOTAL_BYTES of decompressed data in memory, so the cap bounds a burst's peak memory to roughly CC_MAX_CONCURRENT_UPLOADS × CC_MAX_ZIP_TOTAL_BYTES — about 4 GiB at the defaults — rather than growing unchecked. Memory is also explicitly trimmed back after every ingest completes, so resident memory drops toward baseline once a burst finishes instead of staying at its peak until a restart.

Requests beyond the cap simply wait their turn; there's no new error path and no change to the API response, just a longer wait if the server is already processing four uploads. On a memory-constrained host — a small VPS or a Raspberry Pi — lowering CC_MAX_CONCURRENT_UPLOADS trades upload latency under load for a lower memory ceiling. See Configuration.

Diagnostics

Admins can download a redacted Markdown diagnostic report from Settings (or generate it via a CLI script) to attach to a GitHub issue. It covers:

• Versions and build provenance (git SHA and build date).
• Masked configuration (no secrets).
• Disk and storage usage.
• LLM configuration plus a live endpoint reachability probe.
• Database counts.
• A storage-integrity check (missing or orphaned files).
• The effective access policy: whether external requests are allowed, and which proxies are trusted.
• Activity-log status: whether it is on, and where it writes.

Those last two answer the "I can't reach my instance" question immediately, since the report shows at a glance whether the external-request block is what's biting.

Activity log

Every change is recorded to a file on your own disc: who did it, when, what action, and what it touched.

Before this existed nothing recorded mutations at all. The only trace was uvicorn's access log, which gives method, path and status but never identity — so if two people shared an admin login, "who deleted that item?" had no answer.

The log lives at <CC_DATA_DIR>/logs/audit.log. Tail it from the host with:

docker compose exec cataloguecanvas cat /data/logs/audit.log

Format

JSONL: one JSON object per line, with the fields at, actor, role, action, target and detail.

{"at":"2026-08-03T14:22:07+00:00","actor":"admin","role":"admin","action":"item.delete","target":"lantern-042","detail":null}

One object per line means the file can be tailed, grepped, or shipped to a log collector without a schema migration or a database round-trip.

What is recorded

Logins, failed logins and throttled logins; item uploads, deletions, metadata edits and all four batch operations; CSV imports; collection, portfolio, user and library create, update and delete; portfolio share-token mint and clear; static exports; settings updates; and database and full-backup downloads.

What is never written

Passwords, password hashes, share-token values, note bodies, prompt templates, and the LLM API URL.

Settings and item edits record field names only, as in {"fields": ["llm_api_url"]}, never the value behind it. Failed logins record the attempted username but never the password, and never the client IP.

Rotation and retention

The file rolls over at CC_AUDIT_LOG_MAX_BYTES (default 5 MiB), keeping one previous generation as audit.log.1. Only two generations are kept, so the data volume cannot grow without bound.

That does mean older history is discarded. If you need to keep it, export the CSV from Settings on a schedule, or ship the file somewhere else.

It never breaks a request

Every write is best-effort. A read-only volume or a full disc degrades to no logging rather than failing the upload that triggered it — with the log directory made unwritable, a settings update still returns 200.

Configure it with CC_AUDIT_LOG (default 1; set 0 to switch it off), CC_AUDIT_LOG_PATH and CC_AUDIT_LOG_MAX_BYTES. See Configuration.

Command line tools

A maintenance CLI, cc, ships in the image. No rebuild needed.

docker compose exec cataloguecanvas cc <command>

On a bare-metal install the same commands run as uv run cc ... from server/.

Command	What it does
cc reset-password [--user NAME] [--password PW]	Sets a password and revokes every active session, so a reset also invalidates a stolen cookie. Works for single-admin and multi-user installs. Prompts for the password when --password is omitted
cc backup [--out DIR]	Writes the database plus all library files to a zip
cc restore ARCHIVE [--force]	Restores a backup archive over the current data directory
cc ingest DIR [--library ID] [--force]	Bulk-ingests every .zip under a directory, deduplicating by content hash. --force re-ingests files already present
cc diagnostics [--out FILE]	The same redacted report Settings downloads, on stdout or to a file

cc backup and the Settings export share one code path, so the two archives are identical in structure.

cc ingest reads from a mounted folder. docker-compose.yml mounts ./import read-only at /data/import for it.

Restoring a backup

cc restore has no equivalent in the interface; before it there was no restore path anywhere. Because it overwrites live data, it takes several precautions:

• The archive is validated before anything is extracted. Path traversal (../), absolute paths and symlink entries are rejected, so a corrupt or malicious archive cannot write outside the data directory.
• It refuses to overwrite a database that already holds items unless you pass --force.
• The existing database is renamed to catalogue.db.pre-restore-<timestamp>, not deleted, so a restore you regret is recoverable.
• It prints what the archive contains and what it is about to overwrite, then asks for typed confirmation — unless --force.

Checking for updates

An opt-in Updates panel in Settings lets the admin turn on Check for updates. It is off by default, and nothing is checked while it stays off.

With it on, the app reads the latest version tag from the CatalogueCanvas GitHub repository at most once a week and compares it against the running version. It only reads the public version list; nothing about your instance is sent anywhere. A Check now button forces an immediate check and ignores the weekly interval.

When a newer release exists, an update available → vX.Y.Z link appears in the site footer and in the Updates panel; both point at the Updating steps. The check, the button, and the badge are visible to the admin account only. Reader accounts and public visitors never trigger a check or see the badge.

If a check fails because the instance is offline or rate-limited, the app ignores it quietly and carries on.

Operations checklist

• Strong CC_ADMIN_PASSWORD set (and a distinct reader password in multi-user mode)
• Data volume sized for expected assets (it also holds the auto-generated session key)
• Library paths mounted and writable
• Regular backup routine in place
• CC_SITE_TITLE / CC_SITE_AUTHOR set for public portfolios
• CC_ALLOW_EXTERNAL_REQUESTS and CC_TRUSTED_PROXIES match how the instance is reached
• Activity-log retention decided — only two generations are kept, so export the CSV if you need history
